What is the IP rating of the YXYDF3?

The YXYDF3 is rated IP66, making it fully dust-tight and resistant to high-pressure water jets from any direction. Combined with its ADC12 die-casting aluminum housing and tempered glass, it is built for extreme outdoor conditions including infrastructure and sports applications. Lifetime is rated at 50,000 hours.

Is the YXYDF3 UL/ETL certified for North American projects?

Yes. The YXYDF3 carries UL and ETL listings, ensuring it meets strict safety standards for North American projects. Certification documentation can be requested for project submittals via ES2@topkinglite.com.

What control systems are compatible with the YXYDF3?

The YXYDF3 optionally features 3CCT selectability and a 3-step power adjustment (100%-75%-50%) for ultimate on-site flexibility. Standard models operate on an AC 100-277V input voltage infrastructure.

What warranty does the YXYDF3 carry?

The YXYDF3 is backed by a 5-year full-assembly warranty covering all manufacturing defects under normal operating conditions. With proper installation, the rated lifetime reaches 50,000 hours.

About Us

Company profile

Company News

Trade Show News

Honorary Qualification
LED Wall Washer

Linear Light

LWW-PZT-W38A

LWW-WZB-W55

LWW-OP-D80

LWW-ROWS-W150

Spot Light

SP-DKP-F170A

SP-MEGA-F620A

SP-MEGA-F310A/B

Stadium Light

STD-YXYSW4

STD-YXYSW5

STD-YXYSW6

STD-YXYDF3A

LLS-WZB-W40

LLS-OP-W30A

LLS-OP-W20

LLS-OP-D50

SP-EA-R195/R225
Building Wall

Road Bridge

Jinyun County

Live Hotel

Living World Mall Indonesia

Turkmenistan Engineering

Mianyang city a ring road overpass

Lighting Project of Fujiang Bridge

The volga river bridge

Road Lamp Project of Nanlang Village

Sport stadium

Kleanthis Vikelidis Stadium

Florida Atlantic University

Shahid Nassiri Stadium

Rangers Ballpark
Catalogues

Tech Articles

Custom

FAQ
Building Facade Lighting

bridge lighting

stadium lighting

urban lightin

hotel landscape lighting

landmark lighting

ꀅ English

WhatsApp Us

Email Us

High Power LED FloodlightLED FloodlightModel: YXYDF3

YXYDF3

30W–500W IP66 LED Floodlight — UL Listed, CE Certified

The YXYDF3 is a versatile 30W to 500W IP66 LED floodlight engineered for outdoor infrastructure, landscape, and architectural applications. Constructed with ADC12 die-casting aluminum, it delivers excellent thermal management. Featuring an offset bracket with ±120° adjustment, up to 150 lm/W efficacy, and options for 3CCT and 3-step power adjustability (100%-75%-50%), it provides a flexible, high-performance illumination solution.

DLCEnergy rebate qualified

ETLNorth America safety

ULNorth America compliance

CEEuropean compliance

5-YearWarranty support

Color & Optic

Color Options

3000K

4000K

5000K

5700K

6500K

Static white CCTs available. 3CCT Adjustable options (3000K/4000K/5700K or 4000K/5000K/6500K) available upon request.

Beam Options

120°

120° optical lighting distribution for wide area illumination

Technical Parameters Model Configuration

Product Specifications

Power30W / 50W / 100W / 150W / 200W / 250W / 300W / 400W / 500W

LED TypesLUMILEDS

ColorStatic White / 3CCT Selectable

Input Voltage100–277V AC

Housing MaterialADC12 Die-casting Aluminum

Cover LensTempered glass

Control ModeSwitchable Power (100%-75%-50%) / Standard

Beam Angle120°

IP RatingIP66

Impact RatingIK08

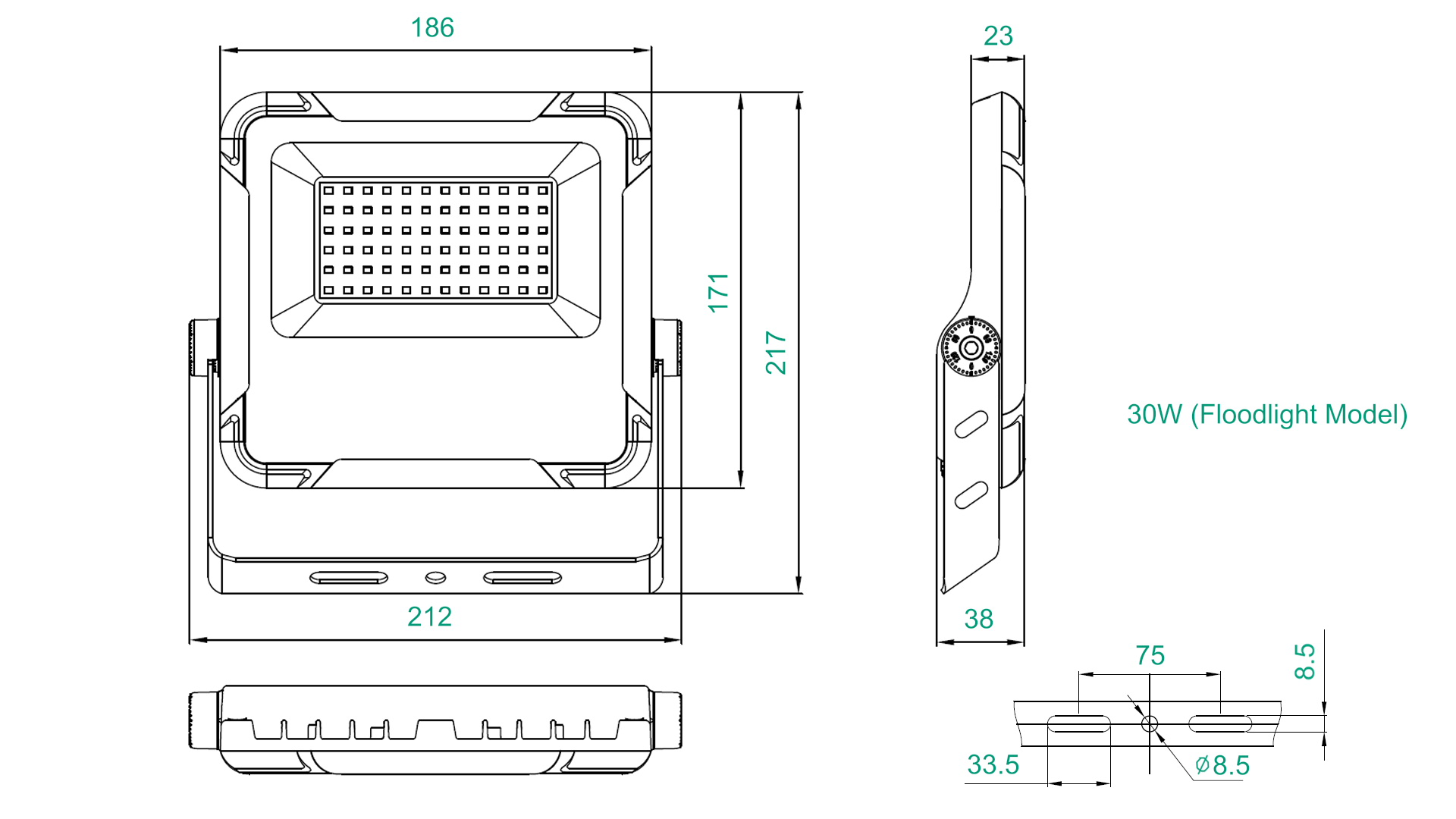

Size217–550 × 212–589 × 38–56mm

Lifetime50,000 hrs

Warranty5 years

Operating Temperature−25°C to +45°C

Model Configuration

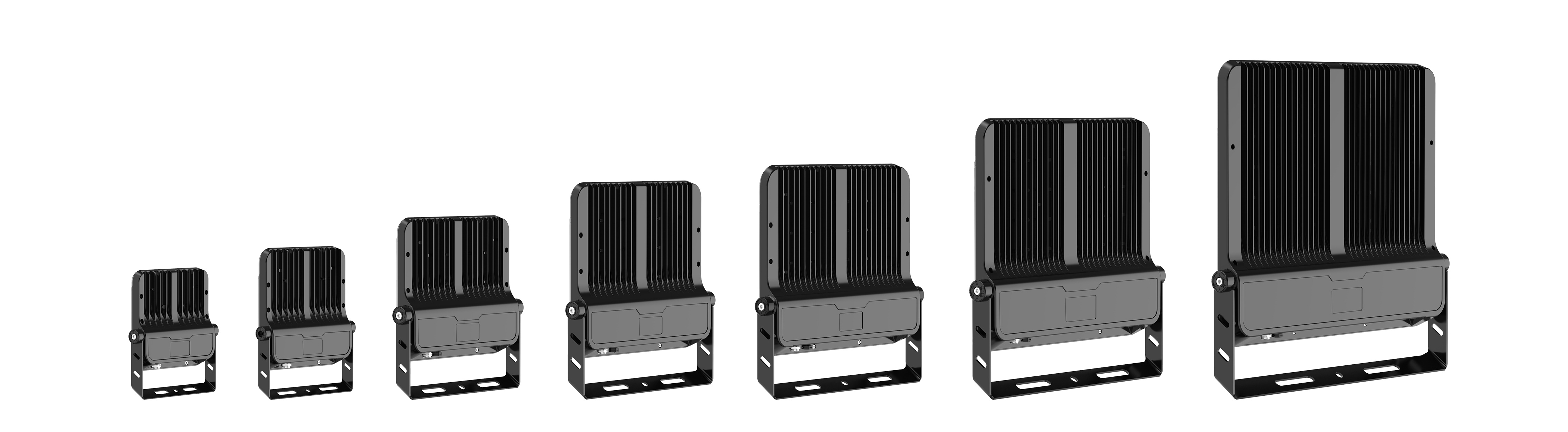

Model	Length	Power	Color Options	Lumen Output	Packing Info
YXYDF3-A100W	302mm	100W	White	15,000 lm	Weight: 3.35 KG Qty/Ctn: 5 Units/Ctn Carton: 395×330×400mm
YXYDF3-A150W	358mm	150W	White	22,500 lm	Weight: 5.05 KG Qty/Ctn: 5 Units/Ctn Carton: 400×395×495mm
YXYDF3-A200W	386mm	200W	White	30,000 lm	Weight: 6.35 KG Qty/Ctn: 4 Units/Ctn Carton: 415×330×555mm
YXYDF3-A250W	460mm	250W	White	37,500 lm	Weight: 8.75 KG Qty/Ctn: 3 Units/Ctn Carton: 460×275×630mm
YXYDF3-A300W	460mm	300W	White	45,000 lm	Weight: 9.0 KG Qty/Ctn: 3 Units/Ctn Carton: 460×275×630mm
YXYDF3-A400W	550mm	400W	White	60,000 lm	Weight: 12.4 KG Qty/Ctn: 2 Units/Ctn Carton: 650×170×625mm
YXYDF3-A500W	550mm	500W	White	75,000 lm	Weight: 12.4 KG Qty/Ctn: 2 Units/Ctn Carton: 650×170×625mm

Lumen output calculated at 150 lm/W (±5%). Specific lumen output may vary based on exact CCT and optics configuration. All models are IP66 and carry a 5-year warranty.

Advantages

ADC12 Die-Casting Heat Sink

Excellent thermal management reduces temperature differences and ensures low lumen depreciation over the fixture's 50,000-hour rated lifetime.

3CCT & Power Adjustable

Features selectable 3CCT configurations and 3-step power adjustment (100%-75%-50%) for ultimate flexibility on site.

Integrated Breather Valve

Perfectly balances internal and external temperature and humidity to protect internal components in harsh weather conditions.

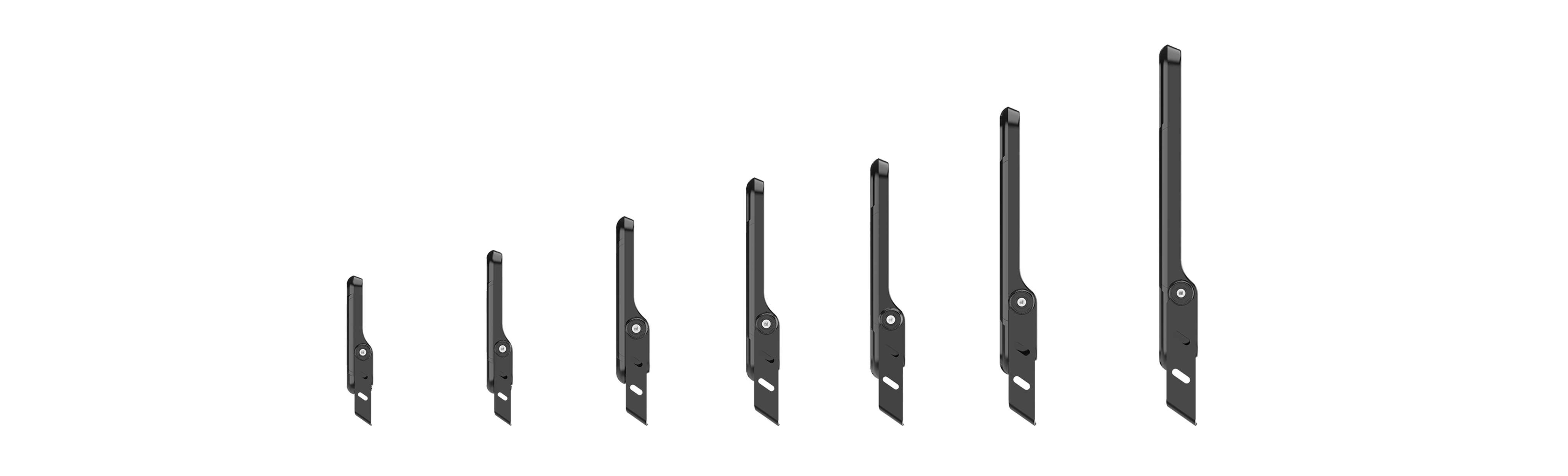

Offset Adjustable Bracket

The specialized racked angle design allows for ±120° adjustment, enabling precise installation and accurate light aiming.

Tempered Glass Protection

High-strength tempered glass cover provides robust physical protection for demanding outdoor and infrastructure environments.

High Efficiency Performance

Top-tier LUMILEDS chips and premium drivers deliver up to 150 lm/W efficacy, maximizing light output while minimizing energy costs.

Impressions

YXYDF3 high power floodlight application view

YXYDF3 stadium and sports lighting effect

Downloads

Specification Sheets

Certification Documents

ETL Certification

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ULNorth AmericaUL listed for US and Canada project documentation. Meets safety standards for outdoor luminaires.Available with documentation

CEEuropean MarketCertified for European LVD and EMC requirements for outdoor high power luminaires.Available with documentation

DLCDLC CertificationDLC certification documentation available for energy efficiency, rebate, and project submittal requirements.Available with documentation

Related Projects

Prokurative

Elegant outdoor event lighting seamlessly integrated into a historic plaza, providing balanced, high-visibility illumination for public sporting and cultural events.

Public Space Lighting
